Product Details
＋

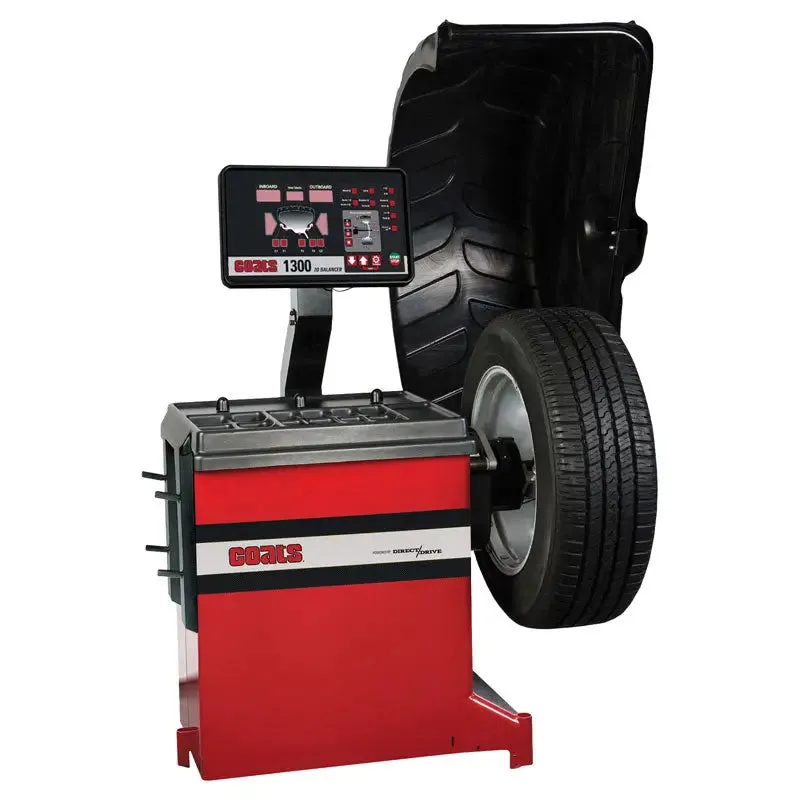

Legendary reliability with state-of-the-art capability. The Direct-Drive Series combines the accuracy and durability of Coats' Direct Drive system with an exclusive set of easy-to-use balancing features designed to get the job done right the first time, every time.
Features:

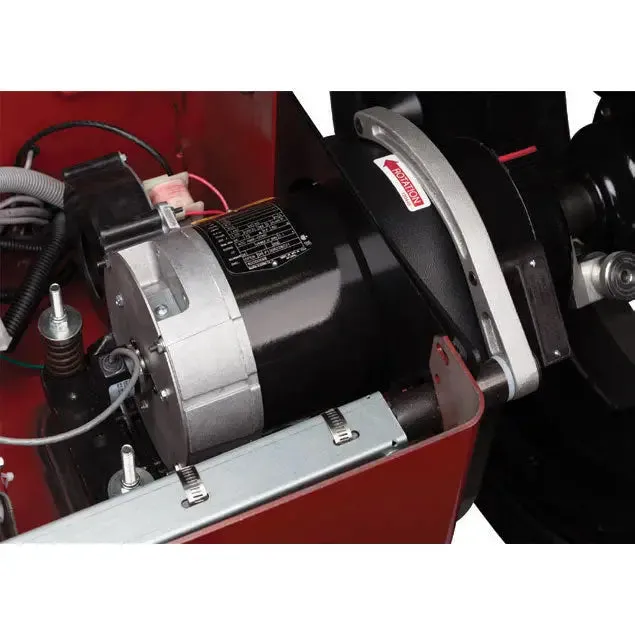

- Powered by Direct DriveTM: Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero. This eliminates the need for frequent calibration and delivers a superior balance result.

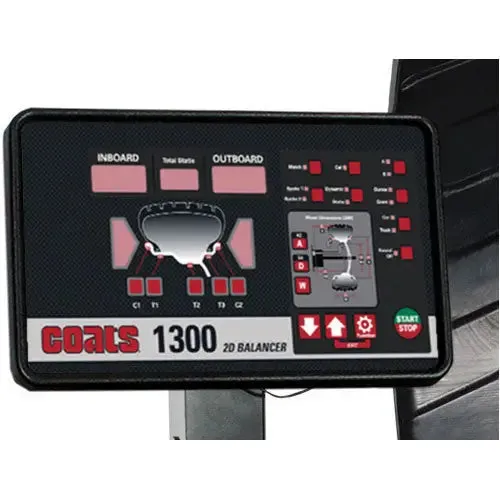

- Static-On-Screen: Static-on-Screen is an exclusive Coats feature that simultaneously displays both static and dynamic unbalance data. This provides a final quality check to identify any excess residual static unbalance, a leading cause of vibration complaints.
- Behind the Spoke: Hides adhesive wheel weights behind the spoke for a clean look on alloy wheels. This keeps the weights hidden from view. Now balancing more complex wheel designs is faster and easier than ever before, plus you maintain a clean look on custom wheels for maximum customer satisfaction.
- Direct Tape-A-Weight Measurement: Helps pinpoint the correct Tape-A-Weight location in alloy balancing modes, improving balancing accuracy and results.
Specs:
Balance Mode: 8Wheel Diameter Range: 8in to 30in
Wheel Width Range: 2in - 20in
Maximum Tire Diameter: Up to 44in
Maximum Tire Weight: 150 lbs.
Shaft Diameter: 40 mm
Interface: LED
Automatic Data Entry: Distance/Diameter
Resolution (Round Off Mode): 0.01 oz
Electrical Requirements: 220v / 1ph or 220v / 3ph
Warranty: 3 Year Parts, 6 Months Labor

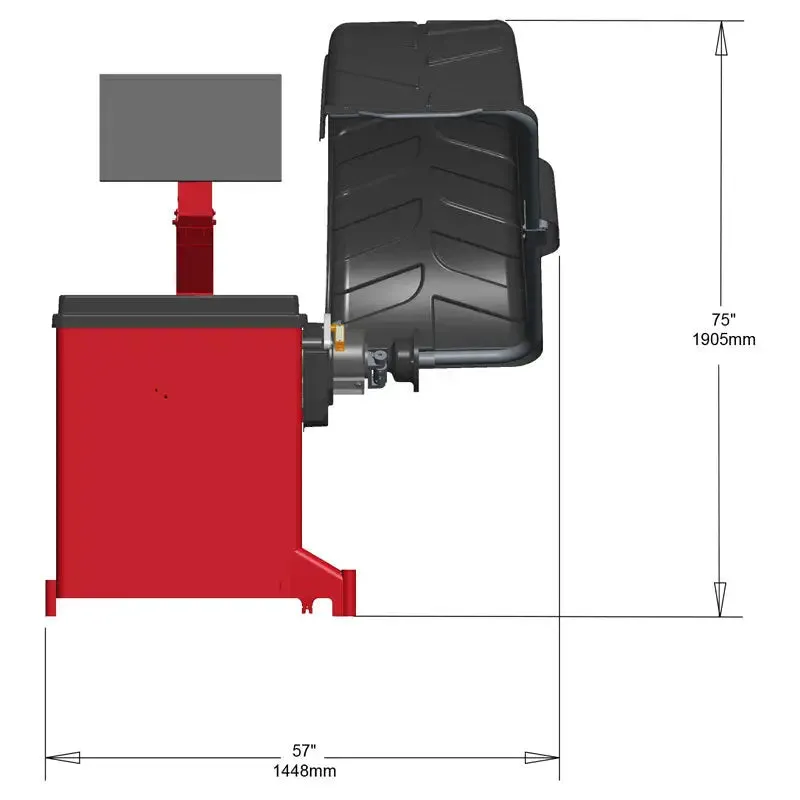

Footprint: 78in H x 60in W x 60in D
Electrical Requirement:
- 220V, 1Phase, 60Hz, 20A Nema L6-20R
- 220V, 3Phase, 60Hz, 20A Nema L15-20R
Shipping Weight: 639 lbs.
Phase: 1
Includes:
8112098 Small A Cone8112099 Medium B Cone
8112100 Large C Cone
8112101 Light Truck Back Cone - D Cone
85607780 Premium Wheel Weight Hammer
8110542 Small Pressure Cup & Rubber Lip
8112107 Spring
8309011 Calipers
8112103 Hub Nut
85608312 No-Mar Ring
